二硒化铪晶体(99.995%) HfSe2(Hafnium Selenide)

  • 价格 8700.12
  • 库存20
  • 品牌HQGraphene
  • 颜色黑色
  • 产地荷兰
  • 产品编号32004SEHQ
  • 型号HfSe2
  • 数量
详情

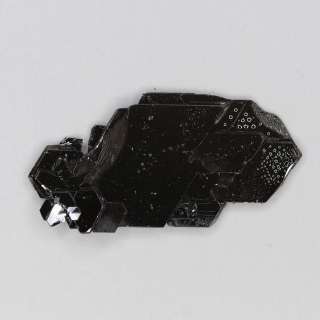

二硒化铪晶体 HfSe2(Hafnium Selenide)
晶体尺寸:~10毫米
电学性能:半导体
晶体结构:六边形
晶胞参数:a = b = 0.3745 nm, c = 0.6160 nm, α = β = 90°, γ = 120°
晶体类型:合成
晶体纯度:>99.995%

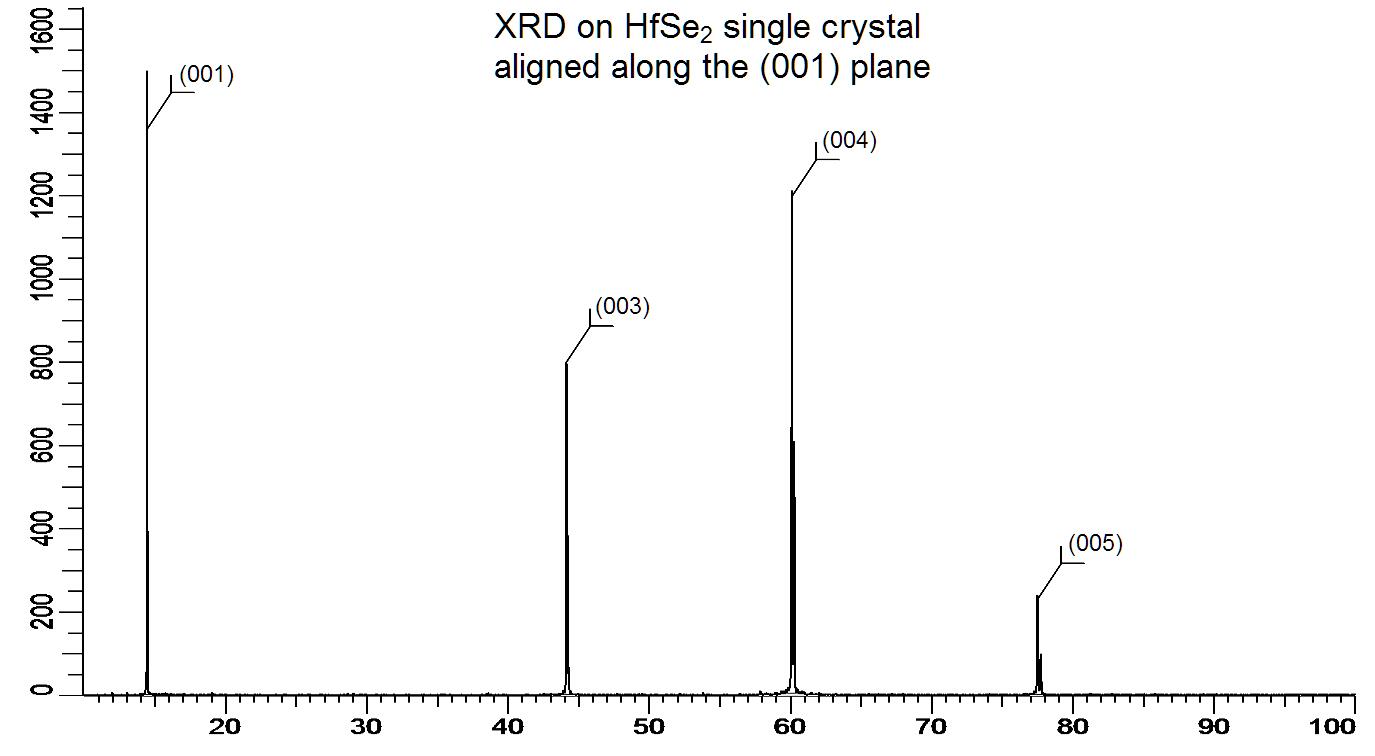

X-ray diffraction on a Hafnium Diselenide single crystal aligned along the (001) plane. XRD was performed at room temperature using a D8 Venture Bruker. The 4 XRD peaks correspond, from left to right, to (00l) with l = 1, 3, 4, 5

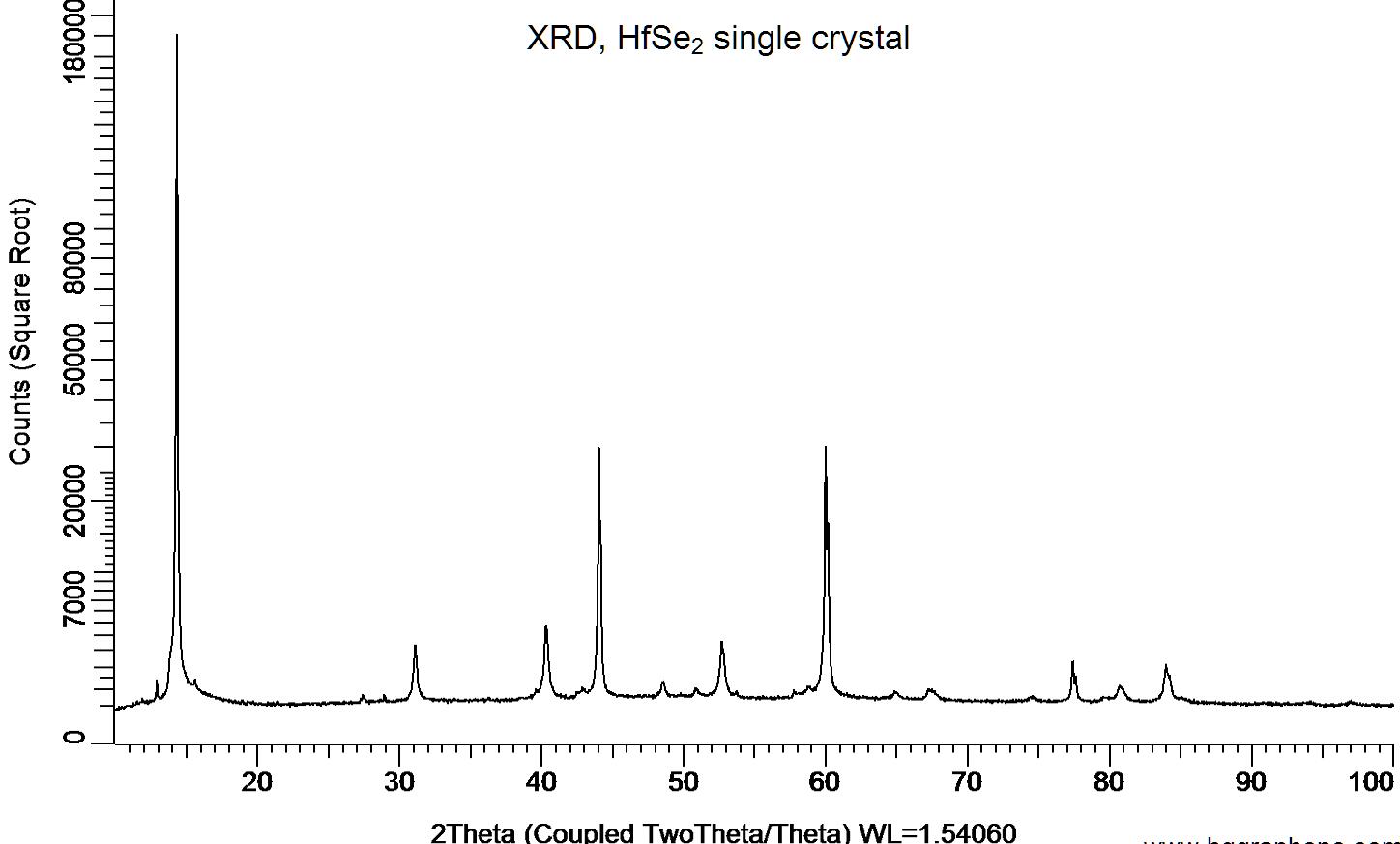

Powder X-ray diffraction (XRD) of a single crystal HfSe2. X-ray diffraction was performed at room temperature using a D8 Venture Bruker.

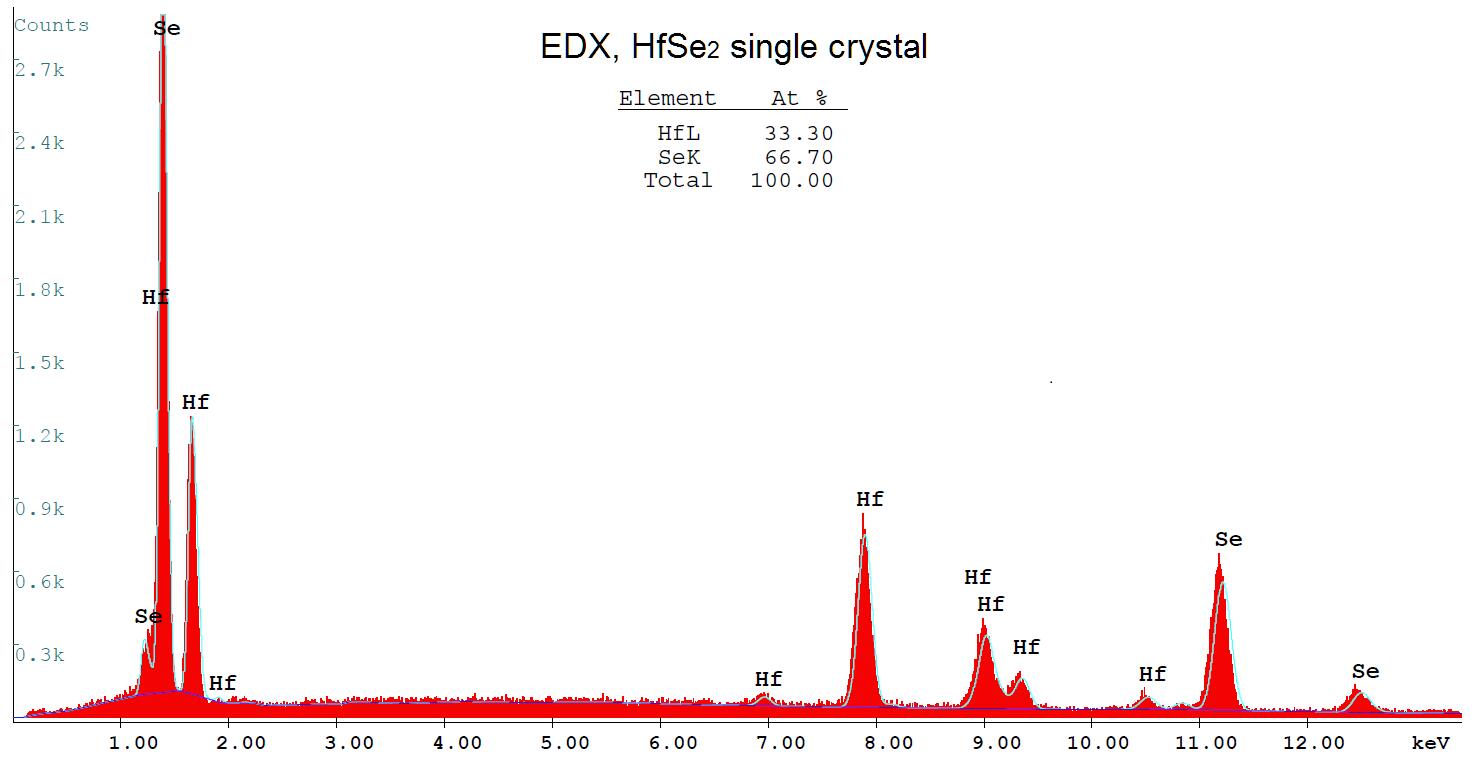

Stoichiometric analysis of a single crystal HfSe2 by Energy-dispersive X-ray spectroscopy (EDX).

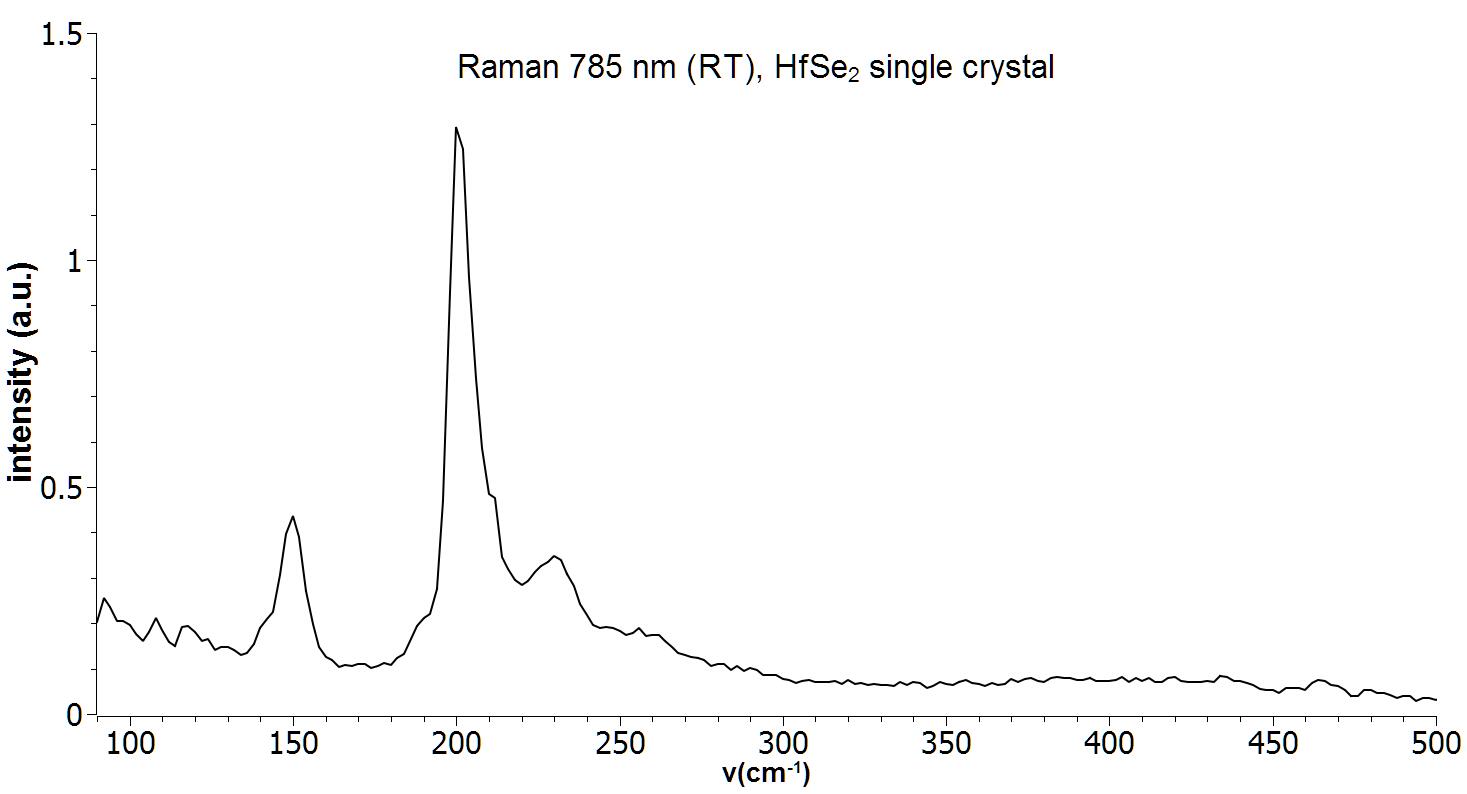

Raman spectrum of a single crystal HfSe2. Measurement was performed with a 785 nm Raman system at room temperature.
